Description

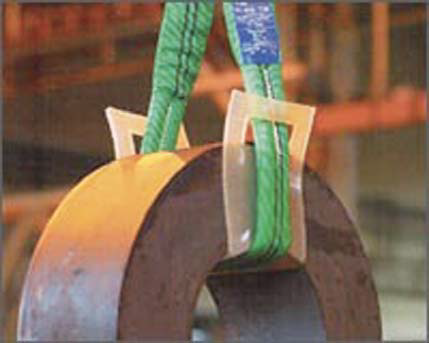

Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.

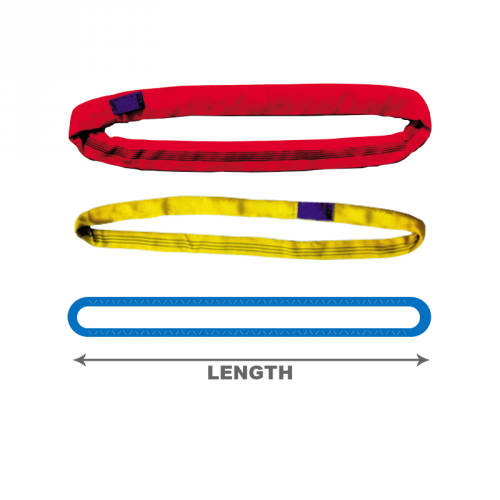

Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times.
Endless Round Sling01
| Stock No. Color | WLL | SWL、WLL(t)、M、CC | Double Multi-set SWL(t) | |||||||
| Vertical | Choker | Vertical | Choker | Vertical | Choker | Vertical | ||||
| 0-7° | 7-45° | 45-60° | <45° | <45° | 45-60° | 45-60° | ||||
 |  |  |  |  |  |  |  |  |
||
| 1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 | ||
| RS7010 | 1t | 1000 | 800 | 2000 | 1400 | 1000 | 2800 | 1120 | 1000 | 800 |
| RS7020 | 2t | 2000 | 1600 | 4000 | 2800 | 2000 | 5600 | 2240 | 2000 | 1600 |
| RS7030 | 3t | 3000 | 2400 | 6000 | 4200 | 3000 | 8400 | 3360 | 3000 | 2400 |
| RS7040 | 4t | 4000 | 3200 | 8000 | 5600 | 4000 | 11,200 | 4480 | 4000 | 3200 |
| RS7050 | 5t | 5000 | 4000 | 10,000 | 7000 | 5000 | 14,000 | 5600 | 5000 | 4000 |
| RS7060 | 6t | 6000 | 4800 | 12,000 | 8400 | 6000 | 16,800 | 6720 | 6000 | 4800 |
| RS7080 | 8t | 8000 | 6400 | 16,000 | 11,200 | 8000 | 22,400 | 8960 | 8000 | 6400 |
| RS7100 | 10t | 10,000 | 8000 | 20,000 | 14,000 | 10,000 | 28,000 | 11,200 | 10,000 | 8000 |
| RS7120 | 12t | 12,000 | 9600 | 24,000 | 16,800 | 12,000 | 33,600 | 13,440 | 12,000 | 9600 |
| RS7150 | 15t | 15,000 | 12,000 | 30,000 | 21,000 | 15,000 | 21,000 | 16,800 | 15,000 | 12,000 |
| RS7200 | 20t | 20,000 | 16,000 | 40,000 | 28,000 | 20,000 | 28,000 | 22,400 | 20,000 | 16,000 |
| RS7300 | 30t | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 42,000 | 33,600 | 30,000 | 24,000 |
The unique advantages of Round sling:

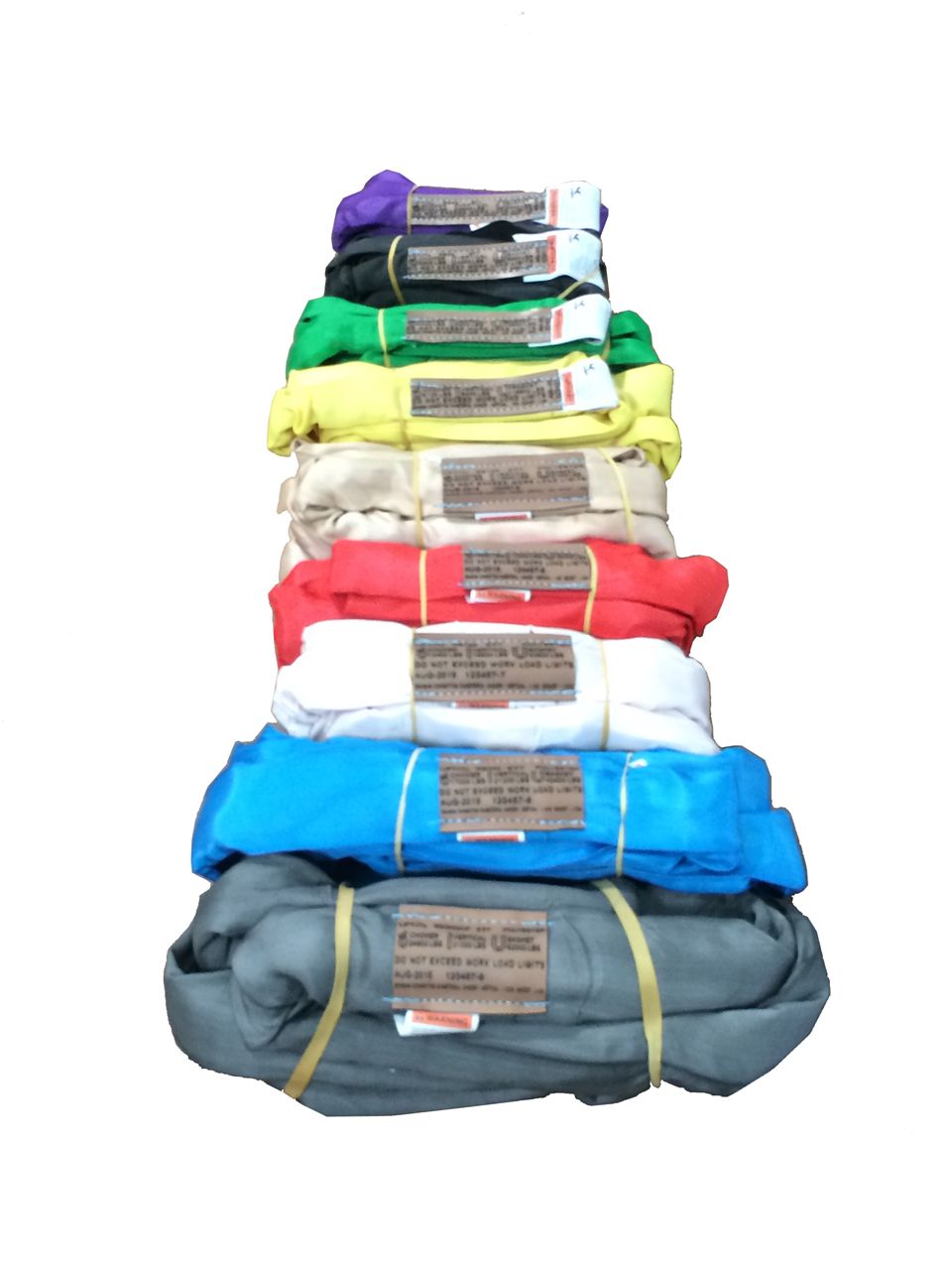

1、Color code, in according with international standard, to validate sling capacity.
2、Special thickness sleeves and special technical to add using life.
3、Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4、Clearly print WLL and length on surface of sling.
5、Change-bearing point to add using life.
6、If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is
taken away from service or not.
7、100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8、Clearly tag with serial number and a copy of certificate together with one sling.
9、Working temperature range: -40℃-100℃
